Hand-held outside diameter measuring head EOD ERG-Billion Leride

Product overview Product overview

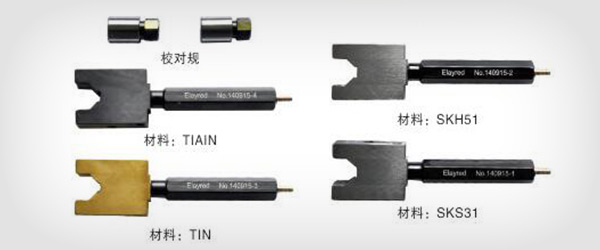

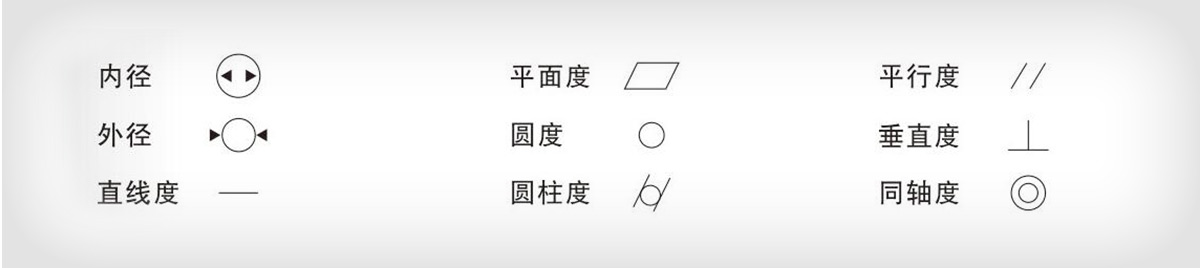

Outer diameter probe for gas measurement & Check gauge OUTSIDE HEAD FOR AIR GAGE & MASTER GAGE Pneumatic outer diameter probe high efficiency and no human error instead of micrometer, caliper type is a better choice, it is directly into the workpiece to blow air, the change of the gap between the workpiece and the probe into the change of air flow, or the change of differential pressure, in the air momentum meter to expand the display of measuring instruments. Outer diameter probe, adoptedCtype(EOD-4,EOD-Ktype)Clamp the workpiece for measurement and fabricationOtype( ERG-4type)There are two methods for measuring the workpiece into the ring, and either method can measure the roundness and cylindricity of a rotation.

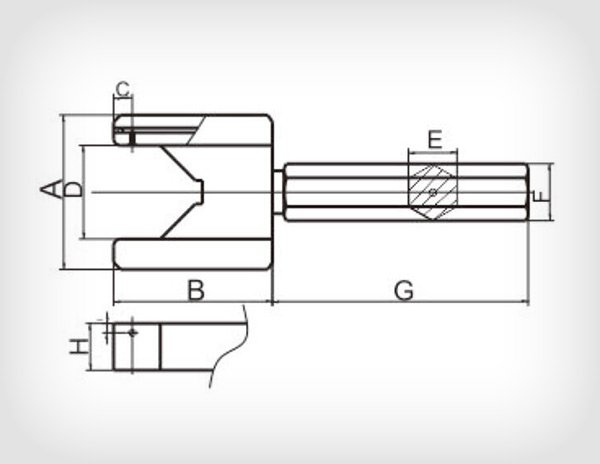

EOD-4type

EOD-4 type

adoptCType structure, workpiece diameter closeVTungsten steel surface on the type for quick reading.

EOD-4Type (mm)
Nominal sizeD	A	B	C	E	F	G	H	I
Greater than4~Less than10	38	47	6	14	16.2	90	20	4
Greater than10~Less than14	42	50	6	14	16.2	90
Greater than14~Less than24	D+26	58	8	17	19.6	90
Greater than24~Less than40	D+26	62	8	17	19.6	90
Greater than40~Less than55	D+26	68	8	17	19.6	90
Greater than55~Less than70	D+26	76	8	21	24.3	110
Greater than70~Less than80	D+32	80	10	Special round hand bucketφ24		110	24	5
Greater than80~Less than90	D+32	90	15			110
Greater than90~Less than100	D+32	95	15			110

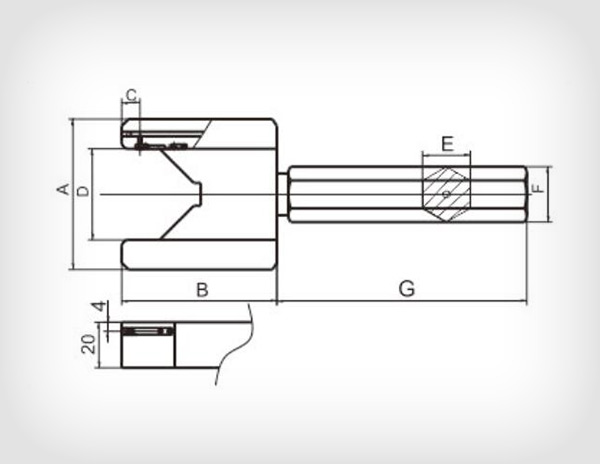

EOD-Ktype

EOD-K type

A shrapnel measuring point is installed on the measuring head, which is mainly used for measuring surfacesφ5mmBelow or surface roughnessRa1.6Above.

EOD-KType (mm)
Nominal sizeD	A	B	C	E	F	G
Greater than4~Less than10	D+30	51	6	14	16.2	90
Greater than10~Less than14	D+30	51	6	14	16.2	90
Greater than14~Less than24	D+30	58	8	17	19.6	90
Greater than24~Less than40	D+30	62	8	17	19.6	90
Greater than40~Less than55	D+30	68	8	17	19.6	90
Greater than55~Less than70	D+30	76	8	21	24.3	110
Greater than70~Less than80	D+32	80	10	Special round hand bucketφ24		110
Greater than80~Less than90	D+32	90	15			110
Greater than90~Less than100	D+32	95	15			110

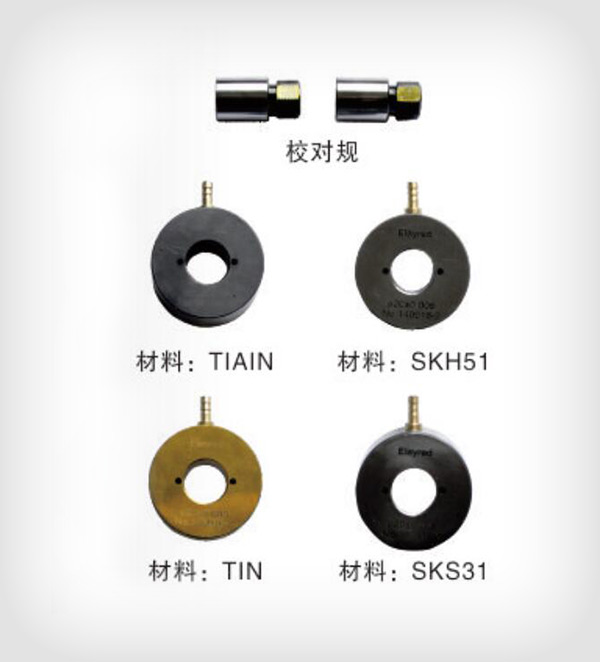

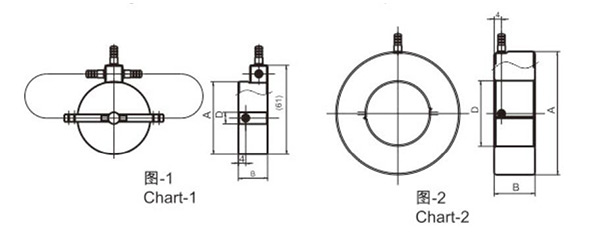

ERG-4type

ERG-4 type

This product is used to measure small workpieces by placing the workpiece in a ring.

ERG-4Type (mm)
Nominal sizeD	A	B	figureChatr
Greater than4~Less than8	50	20	1
Greater than8~Less than14	50	20	2
Greater than14~Less than20	50	20
Greater than20~Less than30	60	22
Greater than30~Less than40	75	25
Greater than40~Less than50	85	28
Greater than50~Less than60	100	30
Greater than60~Less than70	112	30

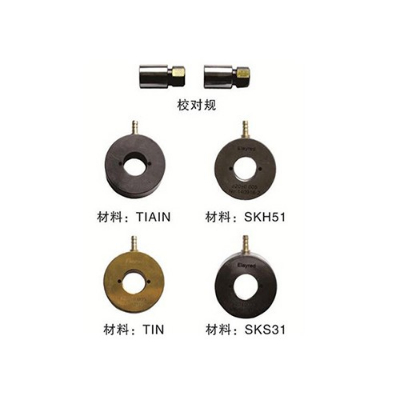

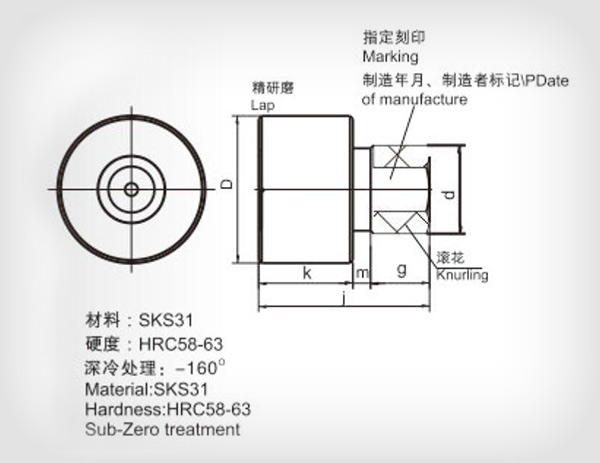

Check plug gauge

MASTER PLUG GAGE

Check ring gaugemm)
Nominal size	k	m	g	j	d	c	n
Greater than1~Less than3	10	2	12	24	5	D-0.3	3
Greater than3~Less than6	12	2	12	26	6	3.5	3
Greater than6~Less than10	16	2	12	30	7	5	3.5
Greater than10~Less than14	20	4	14	38	8	6	4
Greater than14~Less than18	24	4	16	44	10	8	5
Greater than18~Less than24	28	6	18	52	12	9	6
Greater than24~Less than30	32	6	20	58	15	12	7
Greater than30~Less than40	36	8	24	68	18	15	8
Greater than40~Less than50	42	8	28	78	22	19	9
