2~12Channel geometry, shape and position tolerance tester, can be cross-channel operation;
7 & 10Inch full Chinese touch screen display, sapphire blue metal car paint shell;
A/Don-chipElayredThe displacement sensor can have micro-precision and good stability and repeatability;
Red and green, left and right light columns, visual reading of relative values or measured values, as well as form and position tolerance values and group levels;
50Ten thousand data storage,USB,RS485,LAN,I/OMultiple output;
NGAlarm warning; Daily capacity statistics;OK&NGCount; Set mandatory calibration reminders; Inlet pressure detection;
withPC/PLC/The Internet of Things synchronizes data communication, and multiple instruments form a network, together withSPCSoftware for on-site quality management, as well as powerful data traceability;

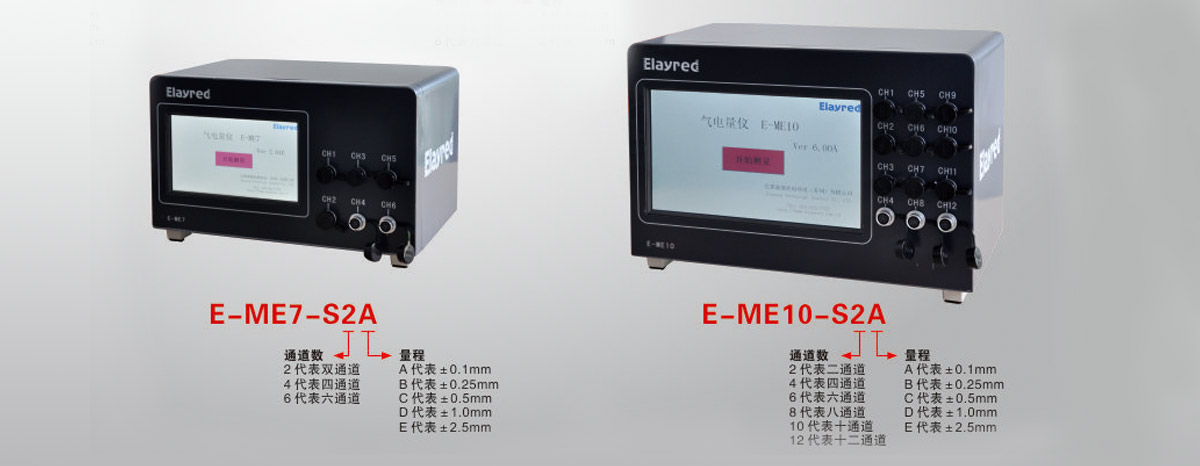

| item | E-ME7-S | E-ME10-S |
| Display screen | 7" | 10" |
| A/E | EG-2 | EG-2 |
| precision | ≤0.3μm | ≤0.3μm |
| Resolution | 0.1/0.2/0.5/1.0 | 0.1/0.2/0.5/1.0 |
| unit | μm/mm/inch | μm/mm/inch |
| Language | Chinese/English | Chinese/English |
| Number of programs | Standard configuration10, expandable | Standard configuration10, expandable |
| Calibration mode | Knob, button automatic | Knob, button automatic |
| Data storage | Manual operation/Auto | Manual operation/Auto |
| Feature | MAX,MIN, MAX-MIN,(MAX-MIN)/2 | MAX,MIN, MAX-MIN,(MAX-MIN)/2 |
| operation | Cross-channel operation | Cross-channel operation |
| Alarm buzzer | There are | There are |
| group | There are | There are |
| cursor | Red and green | Red and green |
| Productivity statistics | There are | There are |
| OKThe number | There are | There are |
| NGThe number | There are | There are |
| Calibration count | There are | There are |
| Forced calibration | There are | There are |
| Data export | USB/RS485/LAN | USB/RS485/LAN |
| I/OControls | There are | There are |
| Data query | There are | There are |
| Power source | 220V | 220V |
| Air source | / | / |
| Air source input | / | / |
| Air source flow | / | / |
| Working humidity | 10%-90%HR | 10%-90%HR |
| Operating temperature | -20℃~50℃ | -20℃~50℃ |
| volume | 310*200*200 | 350*240*200 |
| weight | 7.0Kg | 7.2Kg |
